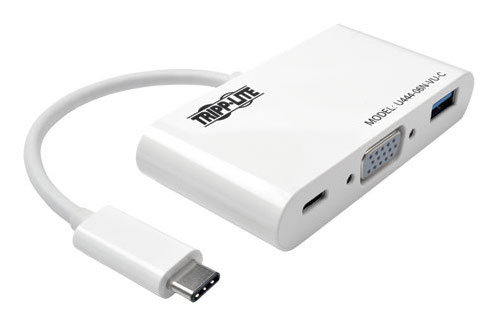

USB-C to VGA, USB-A Hub and USB-C Charging Port adaptor

Adds VGA, USB-A and USB-C charging ports to the USB-C port on your computer, laptop, tablet or other compatible device. Ideal for multitasking, presenting at trade shows and conferences, and editing documents.
  • Supports USB DisplayPort Alternate Mode for transmitting video
  • Supports HD video resolutions up to 1080p (@ 60 Hz)
  • USB-C port connects to wall charger to power connected device
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
  • Plug-and-play—no software or drivers required



Overview

The U444-06N-VU-C USB 3.1 Gen 1 to VGA DisplayPort Alternate Mode External Video Adapter supports USB DisplayPort Alternate Mode for displaying video on a VGA monitor via your computer, laptop or tablet’s USB-C port. It’s an ideal tool for multitasking, editing documents, or giving presentations at trade shows and conferences.

No software or drivers are needed. Connect the adapter’s USB-C male plug to the USB-C port on your device. Then, connect the adapter’s VGA female port to a monitor using a VGA cable (such as Tripp Lite’s P502-Series) to see full VGA video. The U444-06N-VU-C supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz.

The USB 3.1 hub port connects USB-A peripherals, such as a thumb drive or printer. It’s backward compatible with previous USB generations, and supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps.

The USB-C charging port supports power input up to 20V 3A (60W). It powers the device that the U444-06N-VU-C is plugged into, as well as a peripheral plugged into its USB-A port, by connecting the charging port to a USB-C wall charger.

USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum

Features

Easy to Add a VGA Display
  • Supports USB DisplayPort Alternate Mode for transmitting video to a VGA display via your computer, tablet, laptop or smartphone’s USB-C port
  • Ideal for multitasking, viewing spreadsheet data, editing documents and giving presentations
  • Plug-and-play—no software or drivers required
  • Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz

USB-A Hub Port

  • Connect USB peripherals, such as a thumb drive or printer, to your device
  • Backward compatible with previous USB generations
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps

USB-C Port for Charging Portable Devices

  • Supports power input up to 20V 3A (60W)
  • Connects to USB-C wall charger to power connected devices

System Requirements

  • USB-C device that supports USB DisplayPort Alternate Mode
  • VGA-enabled display

Package Includes

  • U444-06N-VU-C USB 3.1 Gen 1 to VGA DisplayPort Alternate Mode External Video Adapter
  • Owner’s manual
RoHS compliant



Specifications

CONNECTIONS
Side A - Connector 1 USB C (MALE)
Side B - Connector 1 HD15 (FEMALE)
Side B - Connector 2 USB 3.0 A (FEMALE)
Side B - Connector 3 USB C (FEMALE)





SKU: TL-U444-06N-VU-C
