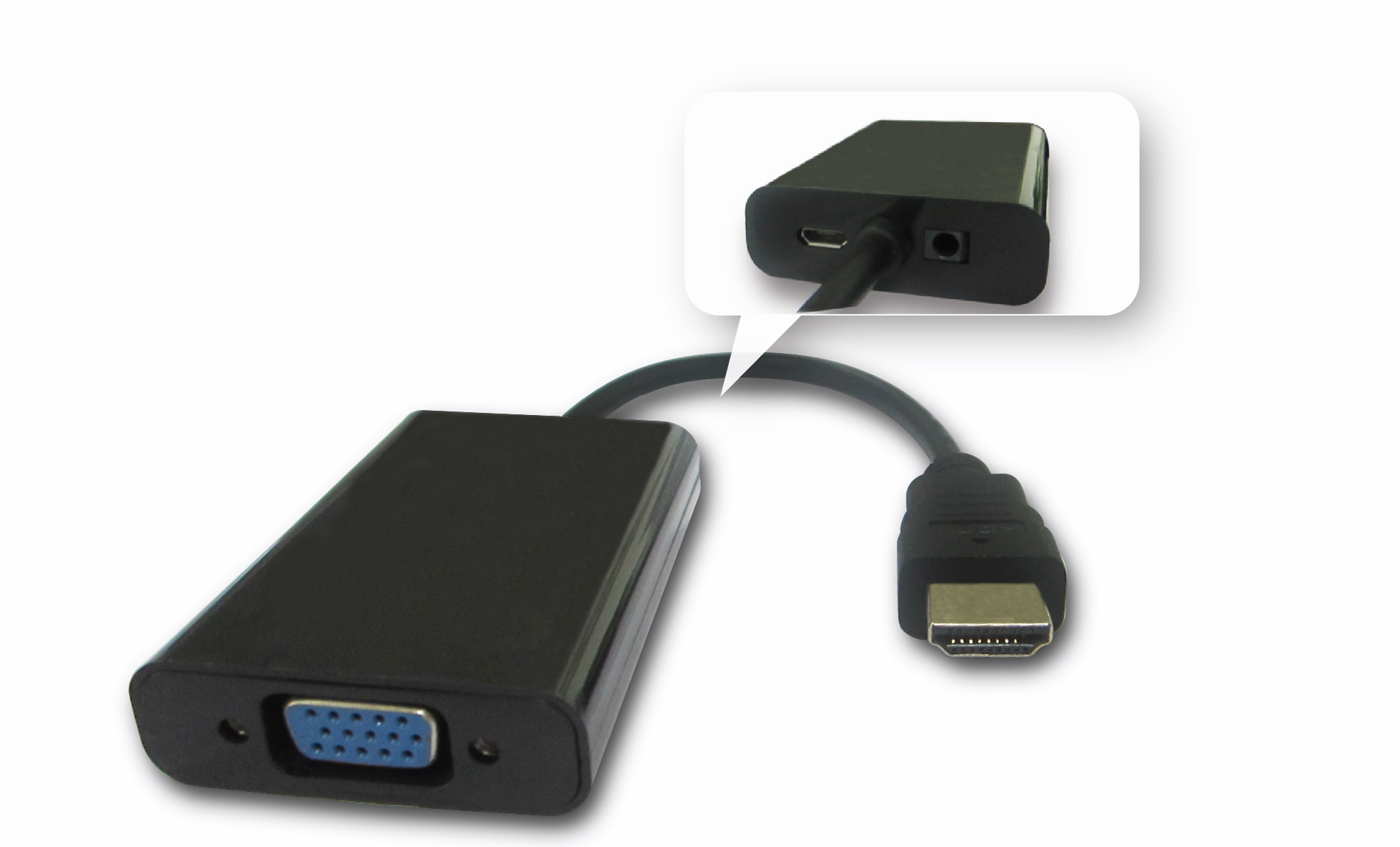

TV Pro HDMI to VGA adaptor with audio mini-jack

The TV Pro adaptor is perfect for connecting a VGA display device to a computer or Apple TV using the HDMI output.

A common use for this adaptor is connecting HDMI to the VGA connector on video projectors or older large screen displays.

The adaptor also provides a 3.5-mm stereo mini-jack for taking the audio from the HDMI connector so it can be fed into the VGA projector or other sound systems.

The TV Pro adaptor is fully standards compliant, and compatible with the HDMI output of Apple Computers and Apple TV in addition to other HDMI equipped devices.

AirPlay® Mirroring For VGA Projector
The TV Pro allows iOS devices to use Apple AirPlay mirroring with an Apple TV on a VGA projector. Eliminate the need for expensive HDMI projection equipment upgrades. Join the thousands of classrooms nationwide that can mirror and stream content direct to a VGA projector via an Apple TV.

TV Pro Compatibiity
The adaptor contains an inbuilt processor which is powered via the HDMI connector, including the AppleTV HDMI output, so an external power surce is not required. A few devices, however, have power saving implementations which do not provide normal power on the HDMI cable (for example MacBook Pro Retina). If you wish to use the adaptor with these, it is simple to use a USB to mini-USB cable (not supplied) to supply 5Vdc to the auxilliary power socket on the adaptor, then it works as usual.

TV Pro Technical Specifications
Input video signal: HD
source Output video signal: VGA HDCP 1.2 Compliant
Audio Output: 3.5-mm stereo mini-jack
Resolutions supported: 480i/576i/480p/576i/720p/720i/1080i/1080p Vertical Frequency Range: 50/60Hz
Cable length: 2.75 in (70 mm)
No external power or AC adapter required with standard HDMI connection.

SKU: NT-CHDMIVGAA
