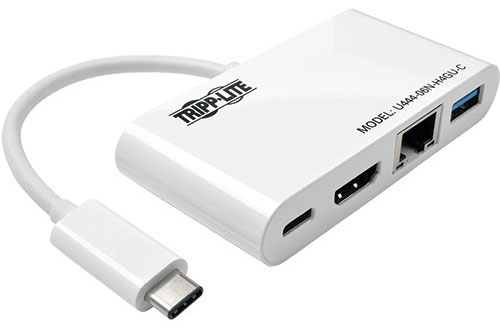

USB-C to HDMI Adaptor with USB-A Hub, USB-C Charging Port & Gigabit Ethernet, 4K x 2K

Adds HDMI, USB-A, Gigabit Ethernet and USB-C charging ports to the USB-C port on a computer, MacBook, laptop, tablet or other compatible device. Ideal for office or home workstation, presenting at trade shows and conferences, and editing documents.

  • Supports USB DisplayPort Alternate Mode for transmitting video
  • Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)
  • Supports true 10/100/1000 Mbps Ethernet network speeds
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
  • Plug-and-play—no software or drivers required
  • (DVI-D monitors can be connected using our optional adaptor)

Overview

The adaptor supports USB DisplayPort Alternate Mode for displaying audio/video signals on an HDMI monitor, television or projector via your computer, laptop or tablet’s USB-C port. It is compatible with MacBook/MacBook Pro computers with Thunderbolt 3 ports. It’s an ideal tool for multitasking, editing documents, giving presentations at trade shows and conferences, or watching movies and playing video games.

No software, drivers or external power supply is needed. Connect the adapter’s USB-C male plug to the USB-C port on your device. Then, connect the adapter’s female HDMI port to a monitor to enjoy full HDMI video and audio. The adaptor supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz.

The adaptor includes an RJ45 Gigabit Ethernet port. Connect to a network with a UTP cable and enjoy true 10/100/1000 Mbps Ethernet speeds.

The USB 3.1 hub port connects USB-A peripherals, such as a thumb drive or printer. It’s backward compatible with previous USB generations, and supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps. You can also connect a USB hub to this port, allowing you to connect many peripherals at the same time.

The USB-C charging port supports power input up to 20V 3A (60W). It powers the device that the adaptor is plugged into, as well as a peripherals plugged into its USB-A port, by connecting the charging port to a USB-C wall charger.

USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum

Features

Easy to Add an HDMI Display
  • Supports USB DisplayPort Alternate Mode for transmitting audio/video to an HDMI display via your computer, tablet, laptop or smartphone’s USB-C port
  • Ideal for multitasking, viewing spreadsheet data, editing documents and giving presentations, and watching movies and playing video games
  • Plug-and-play—no software, external power supply or drivers required
  • Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz

RJ45 Gigabit Ethernet Port

  • Supports true 10/100/1000 Mbps network speeds

USB-A Hub Port

  • Connect USB peripherals, such as a thumb drive or printer, to your device
  • Backward compatible with previous USB generations
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps

USB-C Port for Charging Portable Devices

  • Supports power input up to 20V 3A (60W)
  • Connects to USB-C wall charger to power connected devices

System Requirements

  • USB-C device that supports USB DisplayPort Alternate Mode
  • HDMI-enabled display

Package Includes

  • U444-06N-H4GU-C USB 3.1 Gen 1 USB-C to HDMI DisplayPort Alternate Mode External Video Adapter
  • Owner’s manual
RoHS compliant



Specifications

CONNECTIONS
Side A - Connector 1 USB C (MALE)
Side B - Connector 1 HDMI (FEMALE)
Side B - Connector 2 USB 3.0 A (FEMALE)
Side B - Connector 3 RJ45 (FEMALE)
Side B - Connector 4 USB C (FEMALE)







SKU: TL-U444-06N-H4GU-C
Catalog:
