USB 3.0 SuperSpeed Active Extension Repeater Cable (A M/F), 10M (33-ft.)

Model Number: U330-10M

  • Extend a USB 3.0 signal 33 ft. (10 m.)
  • Increase the extension distance to 66 ft. (20 m.) by connecting two U330-10M together
  • Supports USB 3.0 SuperSpeed data transfer rates up to 5Gbps

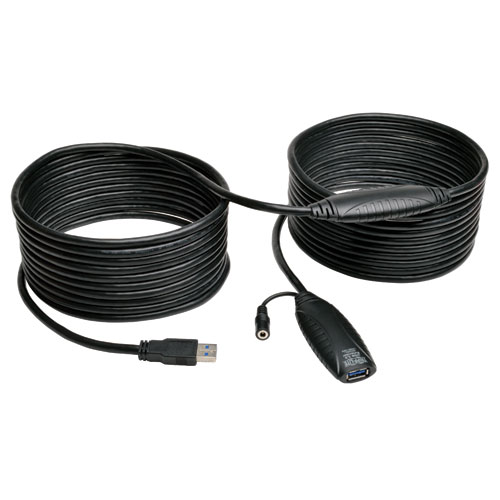

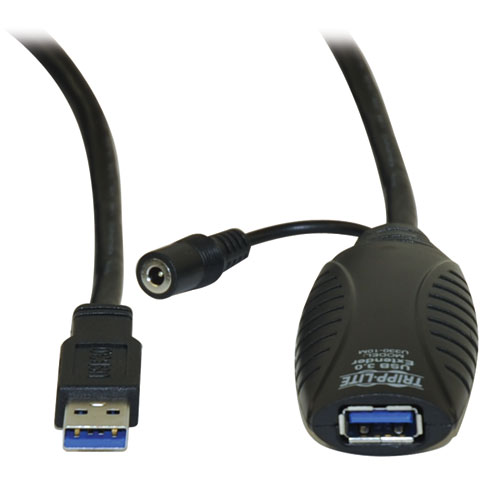

Tripp Lite's 33-ft. USB 3.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. Increase the extension distance to 66 ft. (20 m.) by connecting two U330-10M together. USB limits a cable's length to 16ft. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The cable must be plugged directly into a USB port (either on the PC or a hub). Use a standard 6' 10' or 15' USB 3.0 A-B cable to reach the desired distance. The U330-10M provides up to 120mA of power to the connected device. If your device requires more than 120mA of power, an external power supply will be required. The U330-10M accepts a 5V, 2A power supply with a 3.5 x 1.35mm DC jack. The output plug on the power supply should have a positive tip and a negative sleeve

Key Features

  • Extend a USB 3.0 signal 33 ft. (10 m.)
  • Increase the extension distance to 66 ft. (20 m.) by connecting two U330-10M together
  • Works together with standard USB 3.0 cables
  • Provides up to 120mA of power to the connected device. If your device requires more than 120mA of power, an external power supply will be required.
  • Accepts a 5V, 2A power supply with a 3.5 x 1.35mm DC jack. The output plug on the power supply should have a positive tip and a negative sleeve.
  • Backward compatible to previous USB generations

System Requirements

  • A USB 3.0 Computer port and USB 3.0 device are required to meet USB 3.0 speeds. A USB 2.0 port or device can be used, but you will be limited to the speeds of that port / device.
  • The U330-10M provides up to 120mA of power to the connected device. If your device requires more than 120mA of power, an external power supply will be required. The U330-10M accepts a 5V, 2A power supply with a 3.5 x 1.35mm DC jack. The output plug on the power supply should have a positive tip and a negative sleeve.

Package Includes

  • 10 meter ( 33-ft ) USB3.0 Super Speed A/A Active Extension Cable (USB-A M/F)

OVERVIEW
Chromebook Compatible Yes
Style USB
Model Type Connectivity
Cable Types USB

INPUT
Cable Length (ft.) 33
Cable Length (m) 10

PHYSICAL
Color Gray

CONNECTIONS
Connector A USB 3.0 A (MALE)
Connector B USB 3.0 A (FEMALE)

CERTIFICATIONS
Certifications RoHS Compliant

SKU: TL-U330-10M
