UHD HDMI with Serial and IR Over Cat5/Cat6 Extender Kit, Extended Range Transmitter and Receiver, 3840 x 2160 4Kx2K UHD 1080p up to 60Hz

  • Supports Ultra High Definition (UHD) 4Kx2K video resolutions up to 3840 x 2160 @ 24Hz
  • Supports 7.1 channel surround sound, DTS-HD, and Dolby TrueHD audio
  • IR functionality allows you to use your HDMI source's remote control in the same location as your extended monitor
  • Supports RS232 Serial baud rates up to 115kbps full duplex, for control of devices such as touchscreens or scanners
  • HDCP and 3D compatible
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

The B126-1A1SR transmits HDMI, IR Remote, and Serial RS232 up to 328 ft. (100 m.) using a single Cat5e/6/6a cable. It supports Ultra High Definition (UHD) 4Kx2K video resolutions up to 3840 x 2160 @ 24Hz,. HDCP and 3D compliant, and supports 7.1 channel surround sound, DTS-HD, and Dolby TrueHD audio.RS232 connection allows for use with scanners and touch-screen monitors, supporting Baud rates up to 115kbps full duplex. IR functionality allows you to use your HDMI source's remote control in the same location as your extended monitor/TV. (IR frequency @ 39Khz) Kit includes mounting hardware to be wall mounted, rack mounted, or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Cable Requirements

When extending a 3840 x 2160 @ 24Hz Ultra High Definition (UHD) 4Kx2K video signal, use the following cables (sold separately):


  • Cat6A (available from Tripp Lite as a custom order) for up to 328 ft. (100 m.)
  • Cat6 cable (24AWG, Solid Wire cable required, such as Tripp Lite's N202-Series) for up to 230 ft. (70 m.)
  • Cat5e cable (26AWG, Solid Wire cable required, such as Tripp Lite's N001- and N002-Series) for up to 150 ft. (45.7 m.)

When extending computer video resolutions of 1920 x 1200 @ 60Hz, or HD video resolutions of 1080p @ 60Hz, use Cat5e/6 cable (24AWG, Solid Wire cable required, such as Tripp Lite's N202-Series) to extend the signal up to 328 ft. (100 m.).

Key Features

  • Supports Ultra High Definition (UHD) 4Kx2K video resolutions up to 3840 x 2160 @ 24Hz
  • Extend a 3840 x 2160 @ 24Hz signal up to 328 ft. (100 m.) using Cat6a cable (available from Tripp Lite as a custom order)
  • Extend a 3840 x 2160 @ 24Hz signal up to 230 ft. (70 m.) using Cat6 cable (24AWG, Solid wire cable required, such as Tripp Lite's N202-Series)
  • Extend a 3840 x 2160 @ 24Hz signal up to 150 ft. (45.7 m.) using Cat5 cable (26AWG, Solid wire cable required, such as Tripp Lite's N001- and N002-Series)
  • Extends a computer video signal of 1920 x 1200 @ 60Hz, or a HD signal of 1080p @ 60Hz, up to 328 ft. (100 m.) using Cat5e/6 patch cable (24AWG, Solid wire cable required, such as Tripp Lite's N202-Series)
  • IR functionality allows you to use your HDMI source’s remote control in the same location as your extended monitor
  • Uses an IR frequency of 39 Khz
  • Extend a full duplex RS232 serial signal, such as from a touchscreen monitor, up to 328 ft. (100m) from the source
  • Supports RS232 serial baud rates up to 115kbps full duplex
  • Supports 7.1-channel surround sound, DTS-HD and Dolby True HD audio
  • HDCP and 3D compatible
  • Plug and play; no software or drivers required
  • Includes mounting hardware, allowing each unit to be wall mounted, rack mounted or pole mounted
  • Compliant with the Federal Trade Agreements Act ( TAA ) for GSA Schedule purchases

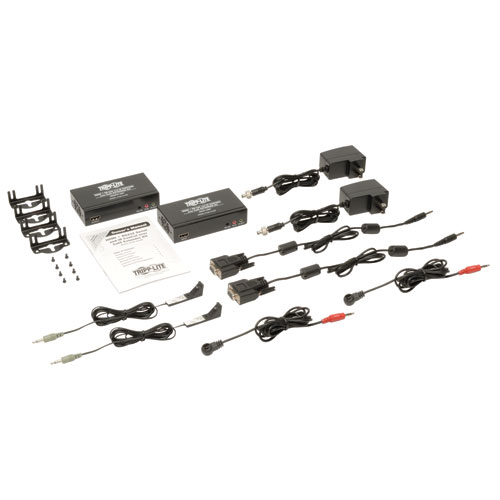

Package Includes

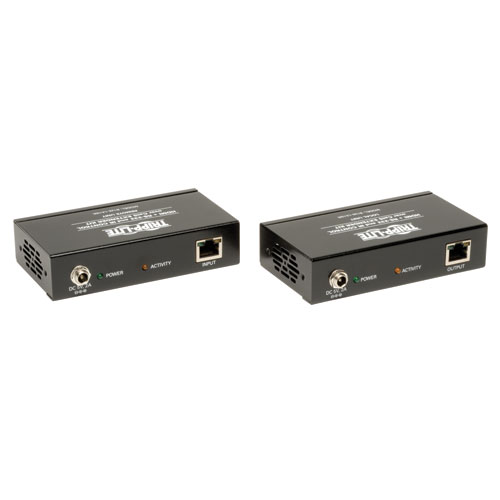

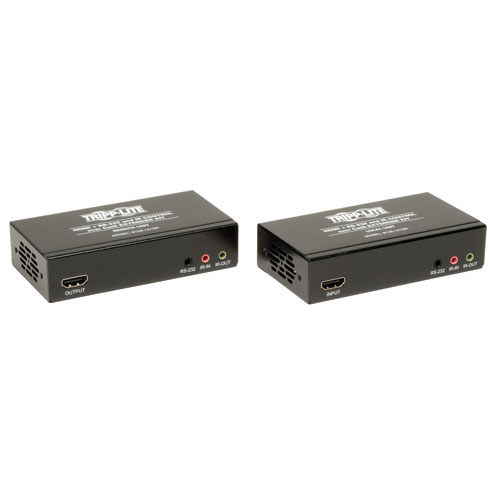

  • Local Transmitter and Remote Receiver Units
  • Two sets of IR-IN Cables
  • Two sets of IR-OUT Cables
  • 3.5 mm Male-to-DB9-Female Adapter Cable
  • 3.5 mm Male-to-DB9-Male Adapter Cable
  • Two sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A)
  • Two sets of Mounting Hardware Kits
  • Owner’s Manual

OVERVIEW

Chromebook Compatible Yes
Display Style Extender
Model Type HDMI
Cable Types CAT5/CAT5E

PHYSICAL

Included Mounting Accessories Y
Color Black

ENVIRONMENTAL

Operating Temperature Range 0 to 40 C (32 to 104 F)
Storage Temperature Range -20 to 60 C (-4 to 140 F)
Relative Humidity 20 to 90%

CONNECTIONS

Connector A HDMI (FEMALE)
Connector B RJ45 (FEMALE)



SKU: TL-B126-1A1SR
