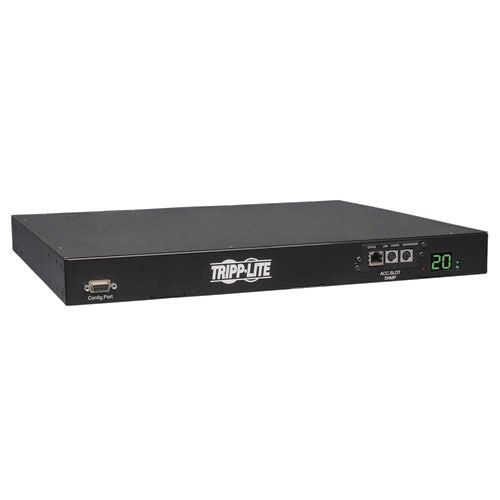

- Single phase 16/20A 200-240V Auto Transfer Switch / ATS PDU
- Enables redundant A/B power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 1U horizontal rackmount; 10 outlets (8 C13 switched / 2 C19 unswitched)
- Individually switched outlets, network interface and 2 digit visual current meter
Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
Key Features
- 200-240V 16/20A Automatic Transfer Switch (ATS) / Switched PDU (Agency de-rated to 16A continuous)
- Enables redundant A/B power option for single-corded network devices
- 2 digit display reports power consumption in amps
- 1U horizontal rackmount form factor
- 10 outlets (8 C13 switched / 2 C19 unswitched)
- Two C20 inlets for separate Primary and Secondary inputs; two 12 ft / 3.7m C20 input cables included
- ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
- ATS configurations enable hot-swappable UPS protection when used with a single UPS and redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time)
- Advanced ATS configurations utilizing separate mains circuits, backup generators and separate out of phase utility power grid feeds are supported
- On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
- 2-7 millisecond transfer time
- Switched outlets and ethernet interface supports individual outlet control on a real-time or programmable basis and user-specified alarm notification thresholds for all reported site power conditions
- DHCP/Manual configuration support
- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Outlets are factory programmed for sequential turn-on at 250 millisecond intervals when the PDU is first energized
- LEDs confirm power availability on both input lines and for each output receptacle
- TAA Compliant Version Available - Order Tripp Lite PDUMH20HVATNTAA
Typical Applications
- Ideal for configurations requiring a simple PDU that displays power consumption in amps
- Optional-use ATS function makes this system ideal for adding redundancy to single corded devices
- ATS function adds hot-swap and maintenance bypass function to standard UPS configurations
Package Includes
- Switch, Metered PDU with ATS Support
- Set of 2 C19 to C20 12 ft. / 3.7m power cables
- User manual with warranty information
OVERVIEW
|
| PDU Type |
Auto-Transfer Switch; Switched |
OUTPUT
|
| Output Capacity Details |
3.33kW (208V), 3.52kW (220V), 3.68kW (230V), 3.84kW (240V), 3.2kW (200V); 20A maximum (Agency de-rated to 16A continuous) |
| Frequency Compatibility |
50 / 60 Hz |
| Output Receptacles |
(8) C13; (2) C19 |
| Output Nominal Voltage |
200-240V nominal, single phase |
| Overload Protection |
n/a |
| Outlet Type |
IEC-C13, IEC-C19 |
| Customized Load Management Receptacles |
8 individually switched C13 output receptacles |
| Individual Outlet Switching |
Yes |
INPUT
|
| PDU Input Voltage |
200; 208; 220; 230; 240 |
| Recommended Electrical Service |
20A 208/240V; 16A 230V |
| Maximum Input Amps |
20 |
| Maximum Input Amps Details |
Agency de-rated to 16A continuous |
| Input Connection Type |
Two labelled C20 inlets support Primary and Secondary input connections - two 12 ft. / 3.7m C19 to C20 power cables included |
| PDU Plug Type |
IEC-320 C20 |
| Input Cord Length (ft.) |
12 |
| Input Cord Length (m) |
3.6 |
| Input Phase |
Single-Phase |
USER INTERFACE, ALERTS & CONTROLS
|
| Front Panel LCD Display |
Digital display reports total PDU output current in amps |
| Front Panel LEDs |
8 LEDs display power on-off status for each C13 output receptacle, plus 2 additional LEDs to indicate input power status for primary and secondary inputs |
| Switches |
Toggle switch near digital display enables the setting of "HI" for 220, 230 or 240V nominal applications or "LO" for 200 or 208V applications |
PHYSICAL
|
| Shipping Dimensions (hwd / in.) |
5.3 x 23.6 x 21 |
| Shipping Dimensions (hwd / cm) |
13.5 x 59.9 x 53.3 |
| Shipping Weight (lbs.) |
19.98 |
| Shipping Weight (kg) |
9.1 |
| Unit Dimensions (hwd / in.) |
1.72 x 17.3 x 14.8 |
| Unit Dimensions (hwd / cm) |
4.4 x 43.9 x 37.6 |
| Unit Weight (lbs.) |
10.3 |
| Unit Weight (kg) |
4.7 |
| Material of Construction |
Metal |
| Form Factors Supported |
1U rackmount |
| PDU Form Factor |
Horizontal (1U, 2U, etc) |
ENVIRONMENTAL
|
| Storage Temperature Range |
5 to 122F (-15 to 50C) |
| Relative Humidity |
5-95% (non-condensing) |
| Operating Elevation (ft.) |
0-10,000 |
| Operating Elevation (m) |
0-3000 |
COMMUNICATIONS
|
| SNMP Compatibility |
Yes, via pre-installled SNMPWEBCARD . Provides remote monitoring, outlet control, and automatic power management configurations. |
CERTIFICATIONS
|
| TAA Compliant Option |
TAA Compliant Version Available - Order Tripp Lite PDUMH20HVATNTAA |
| Certifications |
Tested to UL 60950 (USA, Canada), CE (Europe), Class A (Emissions), NOM (Mexico), RoHS Complaint |
