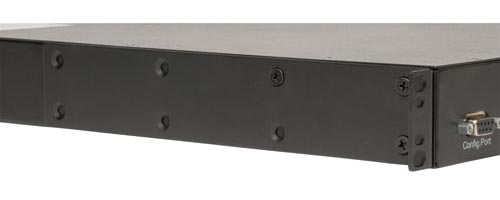

PDUMH20HVAT Single-Phase Auto Transfer Switch / Metered PDU



TrippLite Single-Phase Auto Transfer Switch / Metered PDU, 16/20A 200-240V, 1U Horizontal Rackmount, 8 C13 and 2 C19 outlets, 2 C20 inputs

  • Single phase 16/20A 200-240V Auto Transfer Switch / ATS PDU
  • Enables redundant-power option for single-corded network devices
  • Separate primary & secondary inputs connect to any two compatible power sources

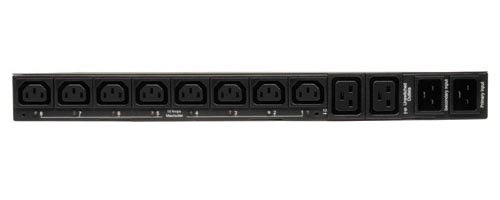

  • 1U horizontal rackmount; 2 C20 inputs; 8 C13 and 2 C19 outlets
  • Two digit visual current meter; Upgrade options available



Overview

Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.



Key Features



  • 200-240V 16/20A Automatic Transfer Switch (ATS) / Metered PDU (Agency de-rated to 16A continuous)
  • Provides a redundant power option for critical networking equipment with a single input power cord

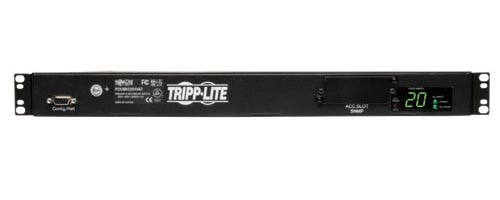

  • 2 digit display reports output power consumption in amps
  • 1U horizontal rackmount form factor; 14.8 in. / 37.6 cm depth
  • 10 outlets (8 C13, 2 C19)
  • Set of two C20 inlets support connection to separate PRIMARY and SECONDARY power sources
  • Two 12ft / 3.6m C19 to C20 power cables included
  • ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
  • ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to Tripp Lite SmartOnline series)
  • Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
  • On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
  • Super-fast switchover between primary and secondary power sources occurs in 2-5 milliseconds
  • Built-in card slot supports optional SNMPWEBCARD for permanent upgrade to a switched & monitored PDU system
  • Outlets are factory programmed for sequential turn-on at 250 millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction on startup
  • Front panel LEDs confirm power availability on both input lines



Typical Applications

Ideal means to provide single-corded networking equipment with a redundant power option

Package Includes



  • Metered PDU with ATS Support
  • User manual with warranty information



Specifications





OVERVIEW
PDU Type Basic
OUTPUT
Frequency compatibility 50 / 60 Hz
Output VA 4992
Output nominal voltage 200-240V nominal, single phase
Overload protection 30A
Outlet quantity / type 16 IEC-C13 & 4 IEC-C19
Outlet Type IEC-C13, IEC-C19
INPUT
PDU Input Voltage 200; 208; 240
Maximum Input Amps (A) 30
Maximum Input Amps (A) Details 30A maximum (agency de-rated to 24A continuous)
PDU Plug Type NEMA L6-30P
Input cord length (ft.) 15
Input cord length (m) 4.57
Phase Single-Phase
PHYSICAL
Shipping Dimensions (HWD/in) 3 x 20.25 x 11.25
Shipping Dimensions (HWD/cm) 7.6 x 51.4 x 28.6
Shipping weight (lbs) 8
Shipping weight (kg) 3.6
Unit Dimensions (HWD/in) 1.75 (1U) x 17.5 x 5.2
Unit Dimensions (HWD/cm) 4.5 x 44.5 x 13.2
Unit weight (lbs) 7.5
Unit weight (kg) 3.4
Material of construction Steel
Style Rackmount, Vertical Rackmount, Wallmount/Under-Counter
Form factors supported 1U rackmount, 0U vertical mount, wallmount and under-counter
PDU Form Factor Horizontal (1U, 2U, etc)
SPECIAL FEATURES
TVSS grounding Yes, via back panel grounding lug
CERTIFICATIONS
Certifications Tested to UL60950-1 (USA), CSA-C22.2 (Canada)





SKU: TL-PDUMH20HVAT
Catalog:
