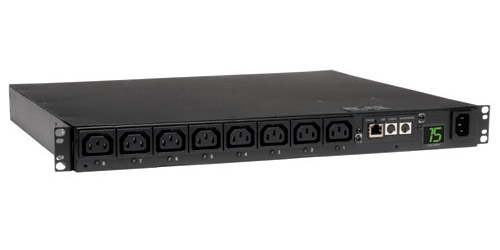

PDUMH15HV Single-Phase Switched PDU, 10/12A 200-240V


Single-Phase Switched PDU, 10/12A 200-240V, 1U Horizontal Rackmount, 8 C13 outlets, C14 inlet with C14 power cable

  • Switched 10/12A 200-240V PDU; 1U horizontal rackmount
  • Reports voltage, frequency & loading information via ethernet interface
  • Visual current meter; reversible housing
  • C14 inlet; 6.5ft / 2m C14 power cable included
  • 8 C13 switched outlets with cord retention brackets
  • Temperature, humidity and contact-closure monitoring options



Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.


Key Features

  • 200/208/230/240V Switched Power Distribution Unit / PDU with built-in web/network interface (15A maximum; Agency de-rated to 12A 200/208/240V and 10A at 230V)
  • C14 power inlet accepts a wide variety of worldwide input cord options
  • Includes 6.5 ft. / 2m C14 cable
  • 1U horizontal rackmount form factor
  • 8 switched C13 outlets
  • Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
  • Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
  • Network interface provides PDU control and data regarding input voltage and output load levels
  • Supports user-specified alarm notification thresholds
  • In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
  • DHCP/Manual configuration support
  • 10/100 Mbps auto-sensing
  • Real-time clock backup maintains the time of day and date even if the PDU is unpowered
  • Tiered access privileges allow an administrator and a guest to login via web browser
  • Alert notifications via email or SNMP traps offer immediate event notification
  • Firmware upgrade ability supports future product enhancements
  • Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
  • Fully compatible with FREE PowerAlert Network Management System / NMS Software
  • Included cord retention brackets keep vital network equipment plugged in and continuously powered


Typical Applications

  • Ideal for network configurations requiring a switched, metered and monitored PDU supporting individual outlet rebooting, load shedding and remote web/network current monitoring of critical networking components

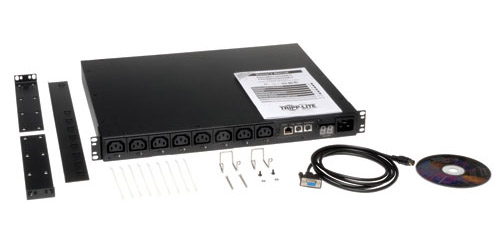

Package Includes

  • 1U Switched PDU
  • Mounting brackets
  • Cord retention plates
  • C13 to C14 power cable



PDU Type Switched
Frequency compatibility 50 / 60 Hz
Output nominal voltage 200; 208; 230, 240V
Overload protection Outlets are arranged in a single unbreakered load bank
Outlet quantity / type 8 C13 outlets
Outlet Type IEC-C13
Customized load management receptacles Each outlet is individually controllable via remote interface
PDU Input Voltage 200; 208; 230; 240
Maximum Input Amps (A) 15
Maximum Input Amps (A) Details 15A maximum (Agency de-rated to 12A at 200, 208, 220 & 240V; Agency de-rated to 10A at 230V)
PDU Plug Type IEC-320 C14
Input cord length (ft.) 6.5
Input cord length (m) 2
Phase Single-Phase
Switches n/a
Front panel LEDs 8 power availability LEDs confirm power off/on status for each built-in outlet
Shipping Dimensions (HWD/in) 5.3 x 20.7 x 23.2
Shipping Dimensions (HWD/cm) 13.5 x 52.6 x 37.6
Shipping weight (lbs) 13.5
Shipping weight (kg) 6.1
Unit Dimensions (HWD/in) 1.75 x 17.3 x 14.8
Unit Dimensions (HWD/cm) 2.87 x 43.9 x 37.6
Unit weight (lbs) 9
Unit weight (kg) 4.1
Material of construction Steel
Style Rackmount
Form factors supported 1U rackmount. Includes mounting accessories for 2-4 post racks
PDU Form Factor Horizontal (1U, 2U, etc)
Relative Humidity 0-95% non-condensing
SNMP compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually
Certifications Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950), RoHS compliant
