PDU1230 30A 208/240V, 1U Horizontal Rackmount


Single-Phase Basic PDU, 30A 208/240V, 1U Horizontal Rackmount, 4 C19 and 16 C13 outlets, NEMA L6-30P input plug

  • Basic single phase 30A 208/240V PDU
  • 1U horizontal rackmount installation
  • NEMA L6-30P input; 15 ft. / 4.5m line cord

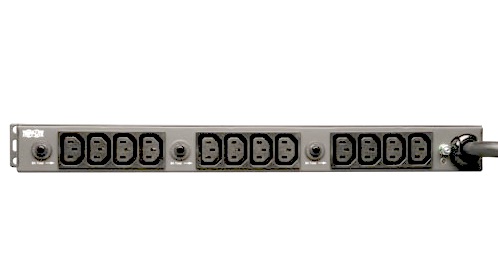

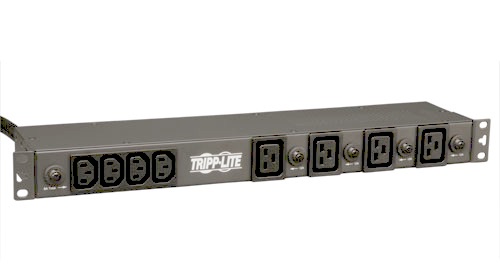

  • 20 outlets (4 C19, 4 C13 front / 12 C13 rear)
  • Reversible housing; 5.2 in. / 13.2 cm depth



Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.


Key Features

  • 30A single phase 208/240V Basic Power Distribution Unit / PDU (agency de-rated to 24A continuous)
  • Attached NEMA L6-30P 30A 208/240V input plug with 15 ft. / 4.5m line cord
  • 1U horizontal rackmount format installs in one rack space
  • 20 outlets (4 C19, 4 C13 front / 12 C13 rear)
  • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
  • Back panel grounding lug

Typical Applications

  • Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19-inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.

Package Includes

  • PDU1230 Power Strip
  • Warranty information
  • Instruction manual



PDU Type Basic
Frequency compatibility 50 / 60 Hz
Output VA 4992
Output nominal voltage 208/240V
Overload protection 30A
Outlet quantity / type 16 IEC-C13 & 4 IEC-C19
Outlet Type IEC-C13, IEC-C19
Nominal Input Voltage(s) Supported 208V AC; 240V AC
PDU Input Voltage 208; 240
Maximum Input Amps (A) 30
Maximum Input Amps (A) Details 30A maximum (agency de-rated to 24A continuous)
PDU Plug Type NEMA L6-30P
Input cord length (ft.) 15
Input cord length (m) 4.57
Voltage compatibility (VAC) 208; 240
Phase Single-Phase
Shipping Dimensions (HWD/in) 3 x 20.25 x 11.25
Shipping Dimensions (HWD/cm) 7.6 x 51.4 x 28.6
Shipping weight (lbs) 8
Shipping weight (kg) 3.6
Unit Dimensions (HWD/in) 1.75 (1U) x 17.5 x 5.2
Unit Dimensions (HWD/cm) 4.5 x 44.5 x 13.2
Unit weight (lbs) 7.5
Unit weight (kg) 3.4
Material of construction Steel
Style Rackmount, Vertical Rackmount, Wallmount/Under-Counter
Form factors supported 1U rackmount, 0U vertical mount, wallmount and under-counter
PDU Form Factor Horizontal (1U, 2U, etc)
TVSS grounding Yes, via back panel grounding lug
Certifications Tested to UL60950-1 (USA), CSA-C22.2 (Canada)
