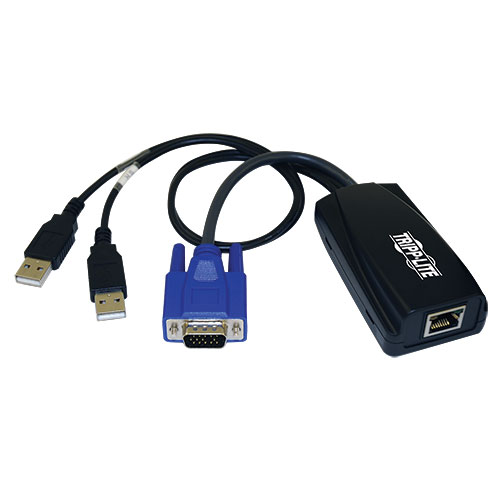

NetCommander USB Server Interface Unit (SIU) with Virtual Media up to 12Mbps

  • Needed to connect a USB Server to a NetCommander Cat5 IP KVM switch, with virtual media support
  • Supports virtual media data transfer rates up to 12Mbps
  • Easy to install; no software needed
  • No power supply required
  • Allows a maximum distance of 100ft from KVM to computer/server via Shielded Cat5e/6 cable
  • Package includes a 5-ft. Cat5e Shielded Patch Cable

To ensure proper functionality, shielded Cat5e/6 cable must be used with the B078-101-USB2

The Tripp Lite NetCommander USB Server Interface Unit (SIU) with Virtual Media support connects to the HD15 port and USB ports on a computer/server, and converts them to a single RJ45 connector. Shielded Cat5e/6 patch cable can then be used to connect the server to the switch ports on a Tripp Lite NetCommander Cat5 IP KVM switch. A 5-ft. Cat5e Shielded patch cable is included with the product. Supports Virtual Media, with data transfer rates up to 12Mbps.

Key Features

  • Needed to connect a USB Server to a NetCommander Cat5 IP KVM switch, with virtual media support
  • Supports virtual media data transfer rates up to 12Mbps
  • Easy to install; no software needed
  • No power supply required
  • Allows a maximum distance of 100-ft. from KVM to computer/server via Shielded Cat5e/6 cable
  • Package includes a 5-ft. Cat5e Shielded Patch Cable

System Requirements

  • Server or CPU with a HD15 port and (x2) USB ports
  • NetCommander Cat5 IP KVM Switch (Note: Not compatible with all NetCommander Cat5 IP KVM switches. Contact Tripp Lite Technical Support for information on your model)
  • To ensure proper functionality, shielded Cat5e/6 cable must be used with the B078-101-USB2

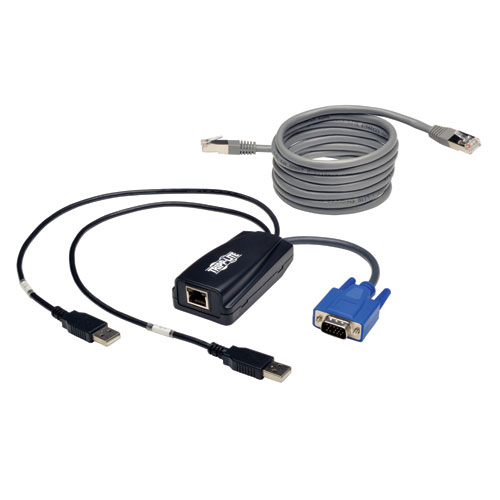

Package Includes

  • B078-101-USB2 USB Server Interface Unit with Virtual Media Support
  • 5-ft. Cat5e Shielded Patch Cable

OVERVIEW
Model Type Interface Modules
Accessories Type Server Interface Unit

CONNECTIONS
Connector A RJ45 (FEMALE)
Connector B HD15 (MALE) & USB-A (MALE) (X2)
Connector C USB A (MALE)
