NetCommander PS/2 Server Interface Unit - single



  • Needed to connect a PS/2 Server to a Smart KVM switch via Cat5e cable
  • Easy to install; no software needed
  • No power supply needed
  • Allows a recommended maximum distance of 100ft from KVM to Server via Cat5e cable
  • Compact and lightweight design

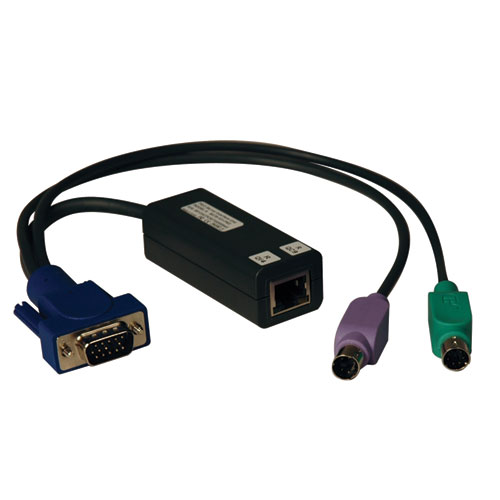

The ROC PS/2 Server Interface Module connects to the HD15 port and PS/2 ports on a computer/server, and converts them to a single RJ45 connector. Ordinary Cat5e patch cables can then be used to connect the computer/server to the switch ports on a Smart KVM switch. Use of Cat5e cables frees up space in the installation that would be filled by traditional, thicker KV

Key Features

  • Needed to connect a PS/2 Server to a Smart KVM switch via Cat5e cable
  • Easy to install; no software needed
  • No power supply needed
  • Allows a recommended maximum distance of 100ft from KVM to Server via Cat5e cable
  • Compact and lightweight design

System Requirements

  • Smart KVM Switch
  • Computer with a VGA video port
  • Computer with PS/2 keyboard and mouse ports

Package Includes

  • ROC PS/2

OVERVIEW
Model Type Interface Modules
Accessories Type Server Interface Unit

CONNECTIONS
Connector A RJ45 (FEMALE)
Connector B HD15 (MALE)
Side B - Connector 2 (x2) MiniDIN6 (Male)



SKU: TL-B078-101-PS2
Catalog:
KVM Products
