HDMI over Cat5/Cat6 Passive Extender, Wallplate Remote Receiver for Video and Audio

  • For use with the B126-002 and B126-004 transmitter units
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • HDCP and 3D compatible
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • No external power required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

The B126-1P0-WP-1 is a receiver wallplate that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features RJ45 jacks for easy connection with patch cables; 110 punchdown not required. No external power required. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.



  • A 1080p (60Hz) signal can be transmitted up to 50 ft.
  • A 1080i (60Hz) signal can be transmitted up to 100 ft.
  • Cannot be used for a 3D signal

Key Features

  • For use with B126-002 and B126-004 transmitter units.
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.

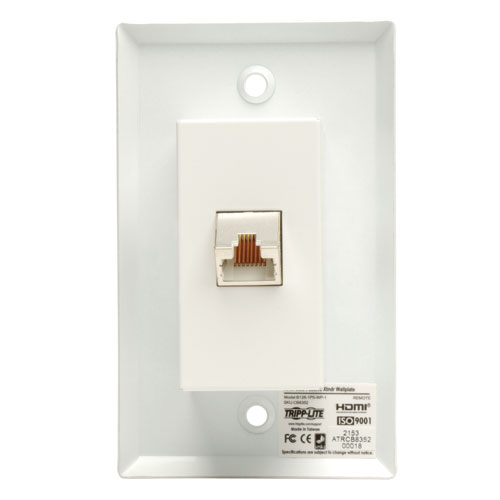

  • Features RJ45 jacks for easy connection with Cat5e/6 patch cable. 110 punchdown not required.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
  • HDCP and 3D compatible.
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
  • Supports 24-bit True Color (8-bits per channel).
  • No external power required.
  • Compatible with all operating systems.
  • Plug and play; No drivers required.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

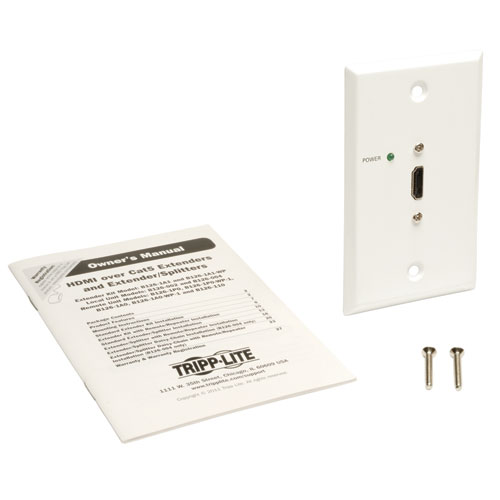

Package Includes

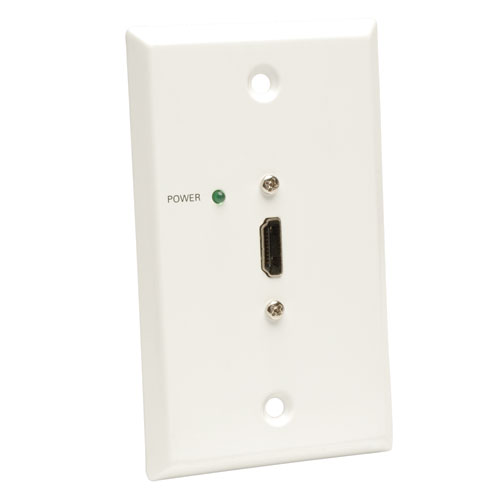

  • B126-1P0-WP-1 HDMI over Cat5 Passive Extender Remote Wallplate
  • Wallplate Mounting Hardware
  • Owner's Manual

OVERVIEW
Chromebook Compatible Yes
Display Style Splitter
Model Type HDMI
Cable Types CAT5/CAT5E

PHYSICAL
Unit Dimensions (hwd / in.) 4.5 x 2.75 x 1
Unit Dimensions (hwd / cm) 11.43 x 6.99 x 2.54
Included Mounting Accessories Yes

ENVIRONMENTAL
Operating Temperature Range 0 to 40 C (32 to 104 F)
Storage Temperature Range -20 to 60 C (-4 to 140 F)
Relative Humidity 20 to 90%

CONNECTIONS
Connector A HDMI (FEMALE)
Connector B RJ45 (FEMALE)
