HDMI over Cat5/Cat6 Passive Extender, Box-Style Remote Receiver for Video and Audio

  • For use with the B126-002 and B126-004 transmitter units
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • HDCP and 3D compatible
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • No external power required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

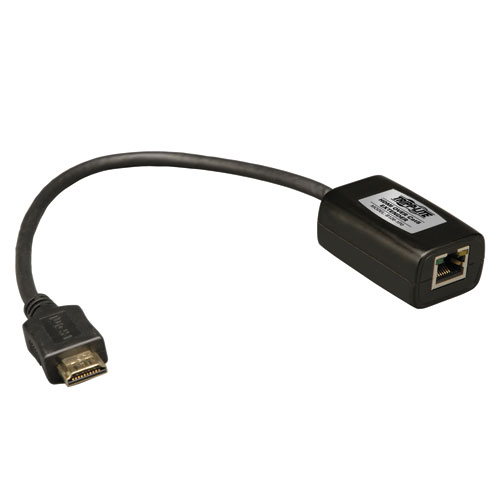

The B126-1P0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) No power is required, and its built-in HDMI male connector plugs directly into a monitor without the need for an additional cable. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the built-in HDMI connector on the receiver unit directly to a display. Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.


  • A 1080p (60Hz) signal can be transmitted up to 50 ft.
  • A 1080i (60Hz) signal can be transmitted up to 100 ft.
  • Cannot be used for a 3D signal

Key Features

  • For use with B126-002 and B126-004 transmitter units.
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source.
  • HDCP and 3D compatible.
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
  • Supports 24-bit True Color (8-bits per channel).
  • No external power required.
  • Compatible with all operating systems.
  • Plug and play; No drivers required.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Package Includes

  • B126-1P0 HDMI Over Cat5 Passive Extender Remote Unit
  • Owner's manual

OVERVIEW
Chromebook Compatible Yes
Display Style Splitter
Model Type HDMI
Cable Types CAT5/CAT5E

PHYSICAL
Color Black

ENVIRONMENTAL
Operating Temperature Range 0 to 40 C (32 to 104 F)
Storage Temperature Range -20 to 60 C (-4 to 140 F)
Relative Humidity 20 to 90%

CONNECTIONS
Connector A RJ45 (FEMALE)
Connector B HDMI (MALE)



SKU: TL-B126-1P0
Catalog:
HDMI over cat5/6
