DisplayPort Extender Equalizer, Repeater for Video & Audio 1920x1200 at 60Hz/1080p (Displayport F/F)

  • Extend a Displayport signal up to 150 ft. from the source
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p.
  • When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) signal more than 100 ft., use cable made with 24Awg wiring
  • Built-in Equalization control to adjust the video image
  • Displayport v1.1a compliant
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite's B121-000 DisplayPort Signal Extender increases the distance a Displayport signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz, as well as a maximum distance of 150 ft. from the source. Use P580-Series Displayport cables in most applications. When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 100 ft., use cable made with 24Awg wiring. (Available from Tripp Lite as a custom order) Simply connect the longer cable between the source and the B121-000, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP compliant. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Key Features

  • Extend a Displayport signal up to 150 ft. from the source
  • Supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz
  • Use P580-Series Displayport Cables
  • When extending a 1920x1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 100 ft., use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order)
  • Built-in Equalization control to adjust the video image
  • HDCP compliant
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

  • A DisplayPort equipped computer
  • A DisplayPort equipped monitor
  • For audio support, you must have a DisplayPort source that supports audio, and which has it enabled. Reference the FAQ in the Q&A tab of this page for details.

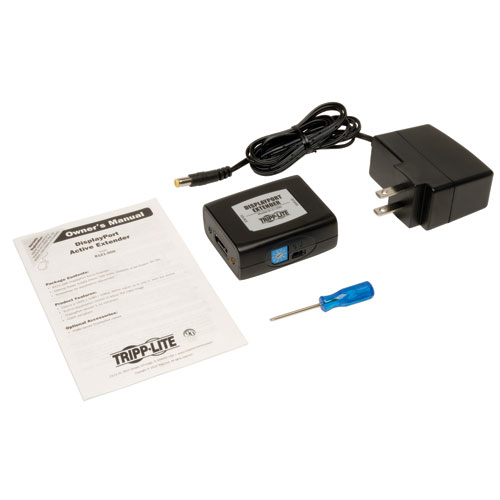

Package Includes

  • B121-000 Displayport Signal Extender
  • External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Screwdriver for Equalization adjustment
  • Owner's Manual

OVERVIEW

Chromebook Compatible No
Display Style Signal Booster
Model Type DisplayPort

LEDS ALARMS & SWITCHES

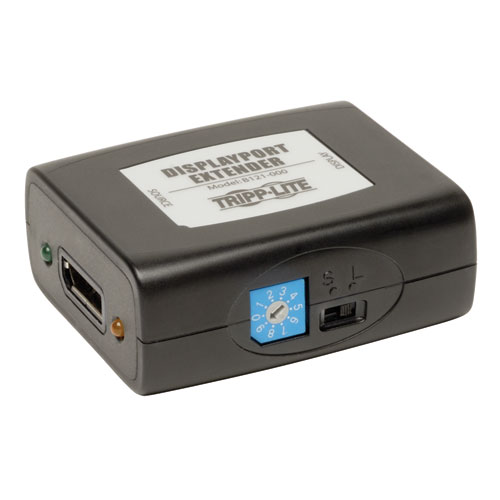

LED Indicators The Green LED illuminates to indicate that the power supply is connected and the unit is receiving power from a power source. The Orange LED illuminates when the S/L Equalization switch is in the L position. The Orange LED does not illuminate when the S/L Equalization switch is in the S position.

PHYSICAL

Color Black

CONNECTIONS

Connector A DISPLAYPORT (FEMALE)
Connector B DISPLAYPORT (FEMALE)
Number of Connectors 2



SKU: NT-B121-000
