Data Doubler for Mac mini 2011, 2012 for upper drive bay
Data Doubler SSD/2.5" Hard Drive installation Kit for Mac mini 2011, 2012 & Later Models with Lower Drive Bay populated.
Includes: Data Doubler Mounting Kit and Tools for Mac mini 2011 & 2012 Models (note: later Mac Minis generally have the upper drive bay already populated, so require the OC-DDMM11D2B kit for mounting the extra drive in the lower bay)
Add a second internal drive
Running out of storage space in your Mac mini or looking to improve performance with an OWC SSD? Now you can add a second 9.5mm or smaller 2.5" SATA Hard Drive or Solid State Drive (sold separately) to your 2011 & 2012 Mac mini.

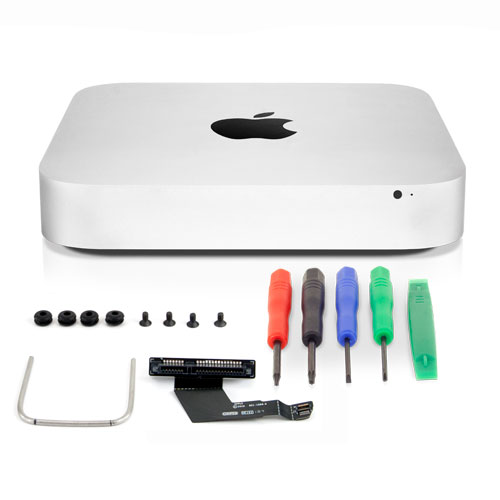

The Toolkit includes the following:
OWC 5-Piece Mini Toolkit
Logic Board Removal Tool
4 Rubber Grommets
4 Hex Screws
Mac mini flex cable
Data Doubler for Mac mini (2011-2012) Installation Guide (4.9 MB)
The Right Tools for the Job
Before attempting to perform this installation, please watch the following instructional video in its entirety to determine your ability to perform this complex procedure. OWC assumes no responsibility for damage that may occur during the install. Technical support for this DIY product consists only of the video at the bottom of the page.
NOTE: A small number of 2012 units were shipped with the drive mounted in the upper drive bay rather than the more typical lower bay shown in this video. If you have a 2012 model, you will want to determine the configuration of your Mac mini's drives prior to ordering.
~To do this using OS X 10.10 or earlier~
Open Applications/Utilities/Disk Utility.app and click on the grey drive icon at the left edge of the window. If the "Connection ID" at the bottom-left corner of the window lists "Lower", you may proceed using the standard installation instructions. If it lists "Upper" then you have a special configuration which will need additional components, and you will need to also refer to the Addendum video.
~To do this using OS X 10.11 or later~
Open Applications/Utilities/Disk Utility.app and click on the grey drive icon at the left edge of the window. Next click the "Info" button on the toolbar. A window will open. Scroll to the "Location" item; if you see "Lower" you may proceed using the standard installation instructions. If it lists "Upper" then you have a special configuration which will need additional components, and you will need to also refer to the Addendum video.
Includes
OWC 5-Piece Mini Toolkit
Logic Board Removal Tool
4 Rubber Grommets
4 Hex Screws
Mac Mini flex cable
Data Doubler for Mac mini (2011-2012) Installation Guide (4.9 MB)
NOTE: This kit contains consumable and/or one time use components and therefore is not covered by any warranty. If you have any concerns about your ability to perform the upgrade, you can return the unopened kit for a refund. The 5-Piece Toolkit (except for nylon pry tool) included with this kit is covered by a 1 Year NewerTech Product Limited Warranty.
