4-Port USB 2.0 over Cat5/Cat6 Extender Hub, Transmitter & Receiver Hub, Hi-Speed USB up to 330-ft. (100M)
Tripp Lite High Speed USB 2.0 over Cat5 Extender Kit with 4-port hub, allows placement of USB hub up to 100 meters ( 328ft ) away from the source computer. Using solid conductor Cat5e rated cable, full 480mbps transmission speed is maintained the entire distance. Ideal for any situation where up to four USB devices need to be located more than the maximum 5 meter distance allowed by the USB timing signal. Also see B203-101 for single device extension. For Solid Conductor patch cables, see tripp Lite N202- series patch cables.
***Note*** The B203-101 and B203-104 are designed for long distance USB data transfer.
When Using with Audio or Video over USB Products (Such as speakers, web cams and display adapters) - Check with the manufacturer to find out if the video device uses Isochronous USB data transfer. If it does, you will need to use a non-Cat5 USB extender product.
When Using with a Touchscreen Monitor - Confirm with the manufacturer that a USB over Cat5 extender can be used with their touchscreen monitor.
If you are unable to use the B203-101 or B203-104 in one of the applications mentioned above, use one of the following Tripp Lite non-Cat5 USB 2.0 Extenders: U026-016, U026-20M, U042-036
Key Features

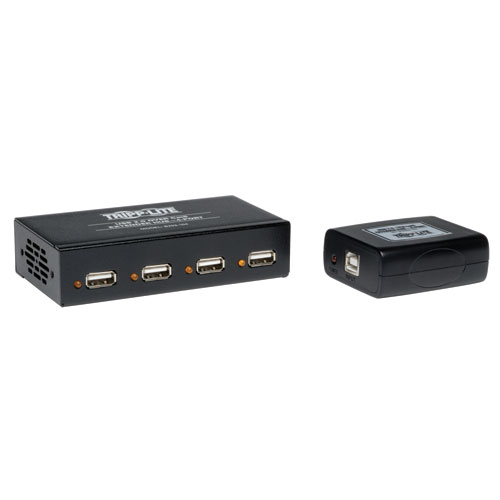

- Kit includes Transmitter and 4port Hub Receiver
- Up to 100 meters ( 328ft ) distance over Solid Conductor Cat5e/Cat6 cable
- Supports high speed data transfer rates up to 480mbps
- Backwards compatible to USB 1.1
- Compatible with Windows XP and later; not Mac compatible
- Includes mounting hardware that allows wall, pole, or rack mounting
- Compliant with the Federal Trade Agreements Act ( TAA ) for GSA Schedule purchases
***Note*** See the System Requirements section for important compatibility notes
Typical Applications
- Use with USB 2.0 peripherals that need to exceed the 16ft ( 5 meter ) USB distance limitation
System Requirements
Included driver must be installed prior to connecting the product to your PC
***Note*** The B203-101 and B203-104 are designed for long distance USB data transfer.
When Using with Audio or Video over USB Products (Such as speakers, web cams and display adapters) - Check with the manufacturer to find out if the video device uses Isochronous USB data transfer. If it does, you will need to use a non-Cat5 USB extender product.
When Using with a Touchscreen Monitor - Confirm with the manufacturer that a USB over Cat5 extender can be used with their touchscreen monitor.
If you are unable to use the B203-101 or B203-104 in one of the applications mentioned above, use one of the following Tripp Lite non-Cat5 USB 2.0 Extenders: U026-016, U026-20M, U042-036

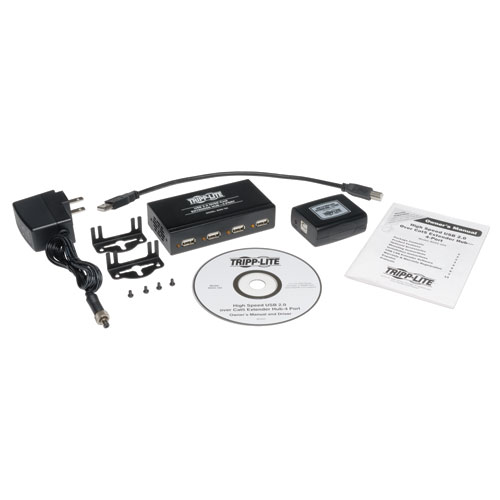

Package Includes
- B203-104 Local Unit
- B203-104 Remote 4-port Hub unit
- 1ft USB A/B cable ( Connection to computer )
- Mounting Hardware
- External Power Supply Remote unit only ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A )
- Driver CD
- Owners Manual
OVERVIEW |
|
|---|---|
| Chromebook Compatible | No |
| Style | USB |
| Cable Types | USB |
PHYSICAL |
|
|---|---|
| Color | Black |
ENVIRONMENTAL |
|
|---|---|
| Storage Temperature Range | -20 to 60 C (-4 to 140 F) |
| Relative Humidity | 20 to 90% |
| Operating Temperature | 0 to 40 C (32 to 104 F) |

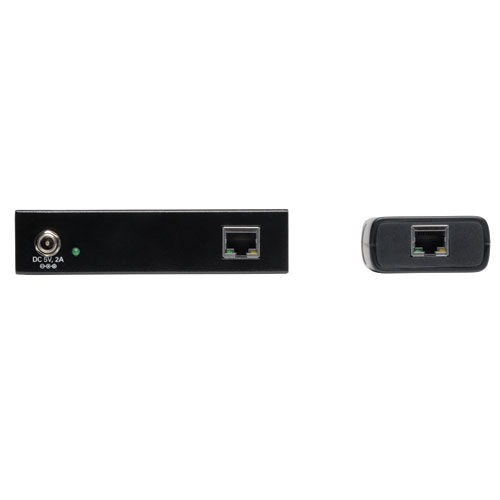

CONNECTIONS |
|
|---|---|
| Connector A | RJ45 (FEMALE) (X2) |
| Connector B | USB A (FEMALE) (X4) |
