4-Port HDMI over Cat5/Cat6 Extender Splitter, Transmitter for Video and Audio

  • Ideal for HDMI digital signage applications requiring multiple displays
  • Can extend an HDMI signal by hundreds of feet with the use of remote receiver units
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • HDCP and 3D compatible
  • Compatible with both stereo audio and 7.1 channel surround sound audio (Multi-Channel or PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

The B126-004 transmits a 1080p (60Hz) signal to four monitors up to 150 ft. away using Cat5e/6 cable, making it the ideal for digital signage applications ranging from retail and point-of-sale displays to trade show presentations. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Daisychain up to three B126-004 transmitters to connect up to 13 monitors (1 Local, 12 Remote). Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Key Features

Digital Signage Capabilities
  • Connect up to 13 monitors (1 Local, 12 Remote) by daisychaining up to three B126-004 transmitters.
  • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 active receiver) with a monitor at each location
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor
  • Features an additional HDMI port for the connection of a local monitor, or to daisychain additional units
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
  • HDCP compatible
  • Supports 24-bit True Color (8-bits per channel)

Distance and Extension Ranges

  • Extends a 1080p (60Hz) signal up to 150 ft. when used with a B126-1A0 or B126-1A0-WP-1 active remote receiver unit
  • Extends a 1080p (60Hz) signal up to 50 ft. when used with a B126-1P0 or B126-1P0-WP passive remote receiver unit
  • Extends a 3D signal up to 125 ft. when used with an active remote receiver unit. A 3D signal cannot be extended using a passive remote receiver unit
  • Extends a 1080p (60Hz) signal up to 125 ft., or a 3D signal up to 100 ft., from the B126-004 transmitter to the first repeater unit
  • Extends a 1080p (60Hz) signal up to an additional 125 ft., or a 3D signal up to an additional 100 ft., from each repeater unit to the next unit
  • Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit

Installation and Setup

  • Plug and play; No drivers required
  • Compatible with all HDMI video sources and all operating systems

Mounting Options

  • The B126-004 includes mounting hardware enabling it to be installed in any venue
  • Mounting options include wall-mount, rackmount and pole mount
  • Mount up to 3 B126-004 transmitters in 1U of rack space using a Tripp Lite B132-004-RB rackmount bracket
  • Mounting hardware included
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

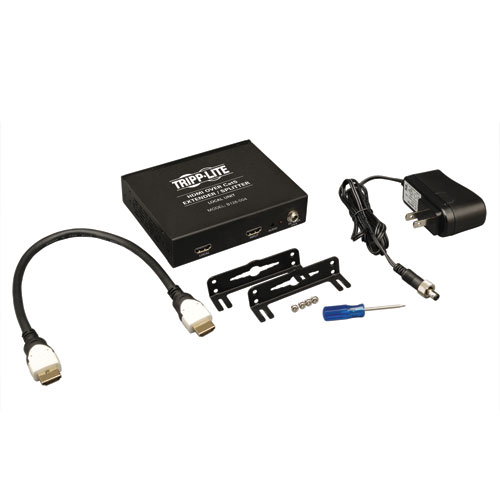

Package Includes

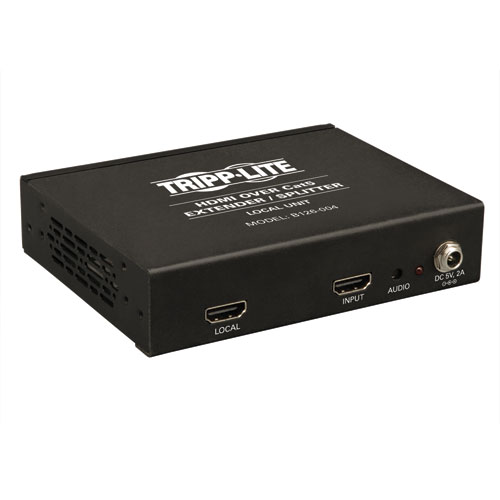

  • B126-004 HDMI Over Cat5 Extender/Splitter, 4-Port
  • 1 ft. HDMI daisychain cable
  • Mounting hardware
  • External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual

OVERVIEW

Chromebook Compatible Yes
Display Style Splitter
Model Type HDMI
Cable Types CAT5/CAT5E

PHYSICAL

Optional Mounting Accessory Notes Up to three B126-004 local units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19in rackmount bracket
Unit Dimensions (hwd / in.) 1.125 x 5 x 4
Unit Dimensions (hwd / cm) 2.86 x 12.7 x 10.16
Included Mounting Accessories Yes
Color Black

ENVIRONMENTAL

Operating Temperature Range 0 to 40 C (32 to 104 F)
Storage Temperature Range -20 to 60 C (-4 to 140 F)
Relative Humidity 20 to 90%

CONNECTIONS

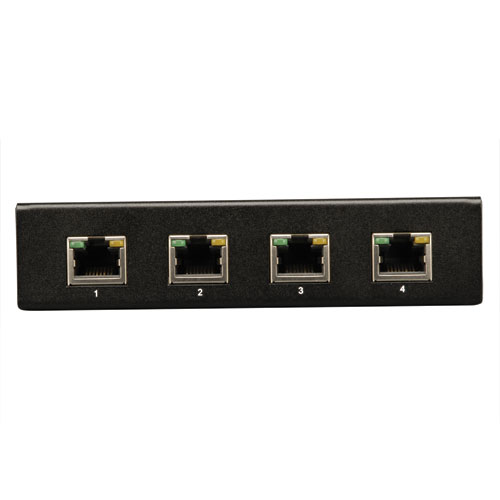

Connector A RJ45 (FEMALE) (X4)
Connector B HDMI (FEMALE) (X2)

This item is a quad transmitter over Cat 5/6. At each of the the receiver ends you need one of the following options:

For longer extension distances, use a B126-1A0 or B126-1A0-WP-1 active receiver:

  • A 1080p (60Hz) signal can be transmitted up to 150 ft.
  • A 1080i (60Hz) signal can be transmitted up to 200 ft.
  • A 3D signal can be transmitted up to 125 ft.

For shorter distances, use a B126-1P0 or B126-1P0-WP passive receiver:

  • A 1080p (60Hz) signal can be transmitted up to 50 ft.
  • A 1080i (60Hz) signal can be transmitted up to 100 ft.
  • Cannot be use for a 3D signal

Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit:

  • Add up to three repeaters on each channel of the B126-002 for a total of 4 displays per channel (A receiver should be the last unit in a channel)
  • A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater added into a channel
  • A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater added into a channel
  • A 3D signal can be extended up to 100 ft. for each repeater added into a channel
