2x2 HDMI over Cat5/Cat6 Matrix Splitter Switch, Transmitter for Video and Audio
- Extend HDMI up to 175ft ( 1080i )
- Switch input sources via Push-button, Remote, or RS232 serial
- HDCP compatible
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Tripp Lite B126-2X2 allows two HDMI video sources ( DVR, Cable box, etc ) to be shared among multiple monitors, over ordinary Cat5e/Cat6 cable. When used with Tripp Lite Active HDMI receivers, can extend a 1080P signal up to 125ft, and 1080i up to 175ft. Allows any Input to be routed to any Output; or the same Input to be routed to multiple outputs. Two monitors can be supported with the basic switch...further expand the range and number of monitors by adding B126-110 remote repeater units. Switch is HDCP compliant, and is Plug-and-Play...no software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Key Features
- Share multiple HDMI sources between multiple monitors
- Allows any input to be routed to any output; or the same input to be routed to multiple outputs
- Transmits the signal over one Cat5e/6 cable to a remote monitor up to 175 ft. away
- A B126-Series remote receiver is needed at each monitor
- For longer distances: Use a B126-1A0 or B126-1A0-WP-1 active remote receiver to extend a 1080p @ 60Hz signal up to 125 ft. from the transmitter (or a 1080i @ 60Hz signal up to 175 ft. from the transmitter)
- For shorter distances: Use a B126-1P0 or B126-1P0-WP-1 passive remote receiver to extend a 1080p @ 60Hz signal up to 50 ft. from the transmitter (or a 1080i @ 60Hz signal up to 75 ft. from the transmitter)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite’s N202-Series, to achieve maximum distance and resolution
- Further expand the range and number of monitors by adding B126-110 remote repeater units
- Add up to three repeaters on each channel of the matrix switch, for a total of 4 displays per channel (An active remote receiver should be the last unit in a channel)
- A 1080p @ 60Hz signal can be extended up to 125 ft. for each repeater added into a channel (or up to 175 ft. for a 1080i @60Hz signal)
- Switch between inputs via pushbuttons, remote control,or RS232 serial
- HDCP-compatible
- Mounting hardware included
- Plug-and-play; no software or drivers required
- Compatible with all operating systems
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

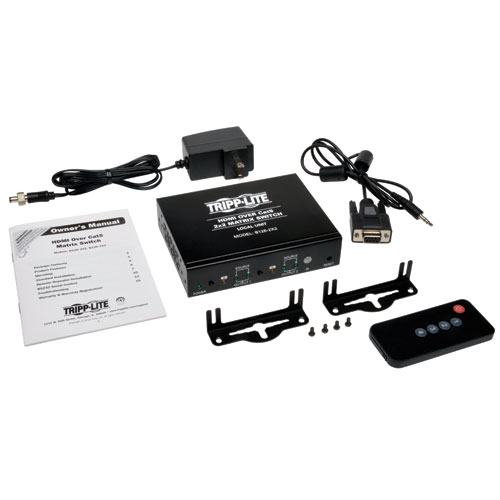

Package Includes
- B126-2X2 Transmitter Unit
- External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output B126-2X2: 5V, 2A
- 3.5 mm to DB9 Adapter Cable ( serial )
- Mounting Hardware
- Remote Control
- Owner’s Manual
OVERVIEW |
|
|---|---|
| Chromebook Compatible | Yes |
| Display Style | Extender |
| Model Type | HDMI |
| Cable Types | CAT5/CAT5E |
PHYSICAL |
|
|---|---|
| Unit Dimensions (hwd / in.) | 1.20 x 5.0 x 3.90 |
| Included Mounting Accessories | Yes |
| Color | Black |
ENVIRONMENTAL |
|
|---|---|
| Operating Temperature Range | 0 to 40 C (32 to 104 F) |
| Storage Temperature Range | -20 to 60 C (-4 to 140 F) |
| Relative Humidity | 20 to 90% |

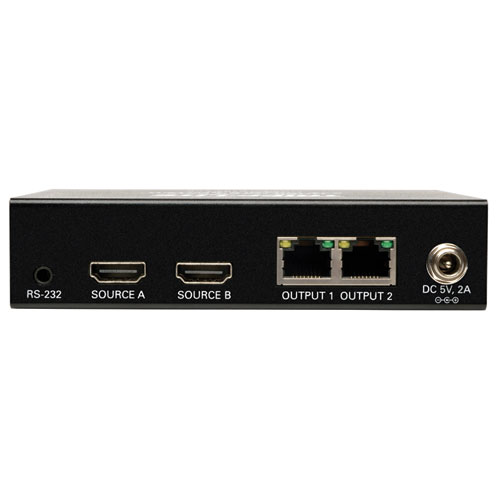

CONNECTIONS |
|
|---|---|
| Connector A | HDMI (FEMALE) (X2) |
| Connector B | RJ45 (FEMALE) (X2) |
This item is a dual transmitter over Cat 5/6. At each of the receiver ends you need one of the following options:
For longer extension distances, use a B126-1A0 or B126-1A0-WP-1 active receiver:
- A 1080p (60Hz) signal can be transmitted up to 150 ft.
- A 1080i (60Hz) signal can be transmitted up to 200 ft.
- A 3D signal can be transmitted up to 125 ft.
For shorter distances, use a B126-1P0 or B126-1P0-WP passive receiver:
- A 1080p (60Hz) signal can be transmitted up to 50 ft.
- A 1080i (60Hz) signal can be transmitted up to 100 ft.
- Cannot be use for a 3D signal
Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit:
- Add up to three repeaters on each channel of the B126-002 for a total of 4 displays per channel (A receiver should be the last unit in a channel)
- A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater added into a channel
- A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater added into a channel
- A 3D signal can be extended up to 100 ft. for each repeater added into a channel
