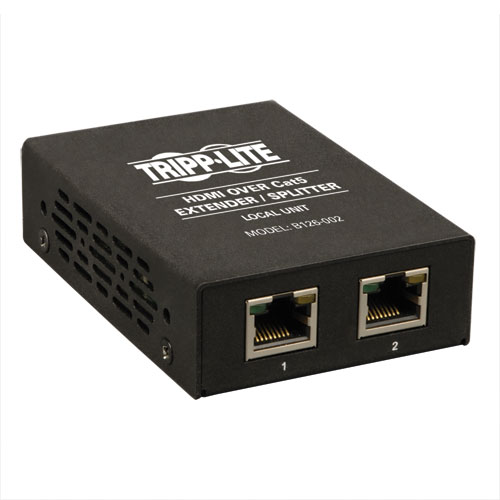

2-Port HDMI over Cat5/Cat6 Extender Splitter, Transmitter for Video and Audio

  • Extends a 1080p (60Hz) signal to two monitors up to 150 ft. using a single Cat5e/6 cable
  • Further extend the signal range or add more monitors by adding repeaters.
  • Supports video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • Compatible with HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (Multi-Channel or PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite's 2-Port HDMI over Cat5/Cat6 Extender Splitter Transmitter sends a 1080p (60Hz) signal to two monitors up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series). Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Mounting hardware is included that allows the B126-002 to be rackmounted, wall-mounted or pole-mounted.

Key Features

  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
  • Extends a 1080p (60Hz) signal up to 150 ft. when used with a B126-1A0 or B126-1A0-WP-1 active remote receiver unit.
  • Extends a 1080p (60Hz) signal up to 50 ft. when used with a B126-1P0 or B126-1P0-WP passive remote receiver unit.
  • Extends a 3D signal up to 125 ft. when used with an active remote receiver unit. A 3D signal cannot be extended using a passive remote receiver unit.
  • Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit.
  • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 active receiver), with a monitor at each location.
  • Extends a 1080p (60Hz) signal up to 125 ft., or a 3D signal up to 100 ft., from the B126-002 transmitter to the first repeater unit in the installation
  • Extends a 1080p (60Hz) signal up to an additional 125 ft., or a 3D signal up to an additional 100 ft., from each repeater unit to the next unit in the installation
  • Supports 24-bit True Color (8-bits per channel)
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
  • HDCP compatible
  • Mounting hardware is included that allows the B126-002 to be rackmounted, wallmounted or pole mounted
  • Compatible with all operating systems
  • Plug and play; No drivers required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

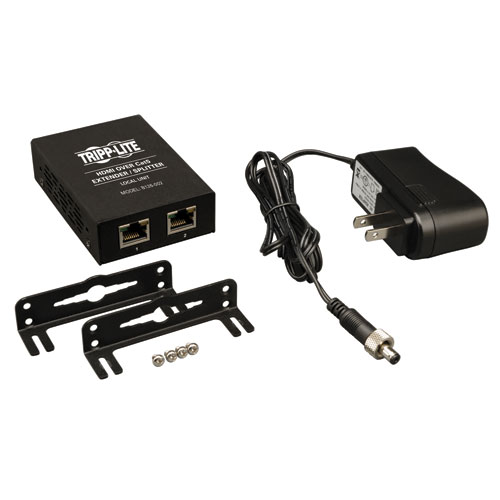

Package Includes

  • B126-002 HDMI Over Cat5 Extender/Splitter, 2-Port
  • Mounting hardware
  • External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual

OVERVIEW

Chromebook Compatible Yes
Display Style Splitter
Model Type HDMI
Cable Types CAT5/CAT5E

PHYSICAL

Unit Dimensions (hwd / in.) 1 x 2.5 x 3.6
Unit Dimensions (hwd / cm) 2.54 x 6.35 x 9.14
Included Mounting Accessories Yes
Color Black

ENVIRONMENTAL

Operating Temperature Range 0 to 40 C (32 to 104 F)
Storage Temperature Range -20 to 60 C (-4 to 140 F)
Relative Humidity 20 to 90%

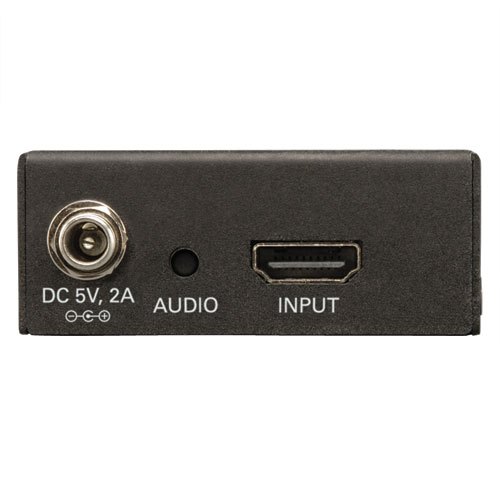

CONNECTIONS

Connector A RJ45 (FEMALE) (X2)
Connector B HDMI (FEMALE)

This item is a dual transmitter over Cat 5/6. At the receiver ends you need one of the following options:

For longer extension distances, use a B126-1A0 or B126-1A0-WP-1 active receiver:

  • A 1080p (60Hz) signal can be transmitted up to 150 ft.
  • A 1080i (60Hz) signal can be transmitted up to 200 ft.
  • A 3D signal can be transmitted up to 125 ft.

For shorter distances, use a B126-1P0 or B126-1P0-WP passive receiver:

  • A 1080p (60Hz) signal can be transmitted up to 50 ft.
  • A 1080i (60Hz) signal can be transmitted up to 100 ft.
  • Cannot be use for a 3D signal

Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit:

  • Add up to three repeaters on each channel of the B126-002 for a total of 4 displays per channel (A receiver should be the last unit in a channel)
  • A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater added into a channel
  • A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater added into a channel
  • A 3D signal can be extended up to 100 ft. for each repeater added into a channel
SKU: TL-B126-002
