2-Port DisplayPort to DVI Splitter, Multi-display adapter, 3840x1200 at 60Hz

Tripp Lite B156-002-DVI allows you to split or expand a DisplayPort video signal on two DVI monitors using standard DVI cables. You can choose to display the same image on both displays, or to expand it over both. Supports video resolutions up to 1920 x 1080 @ 60Hz (or 3840 x 1080 @ 60Hz) when monitors are set to extended mode). The splitter can be located up to 16 ft. from the source, and to 35 ft. from the connected monitors. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Key Features

  • Splits a DisplayPort video signal to two DVI monitors, or expands the video over both
  • Supports video resolutions up to 1920 x 1080 @ 60Hz (or 3840 x 1080 @ 60Hz when monitors are set to extended mode)
  • Supports 30-bit Deep Color (10-bits per channel)
  • Supports HDCP, EDID and DDC
  • Monitor(s) can be located up to 35 ft. from the splitter
  • Comes with mounting hardware that allows the unit to be wall-mounted, rackmounted or pole mounted
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Apple OSX note: Macintosh hardware with Thunderbolt connectors supports this MST hardware. OSX does not. If the Macintosh is running Windows under Bootcamp, it works fine because Windows has full control of the hardware. However, Apple OSX does not support MST for two monitors at this time. This means that if the Macintosh is running OSX, you'll only get a pair of mirrored displays and peculiar behaviour. to boot, if the two external monitors are different resolutions. We hope Apple will support MST properly, soon.

System Requirements

  • A DisplayPort equipped computer
  • (x2) DVI equipped monitors

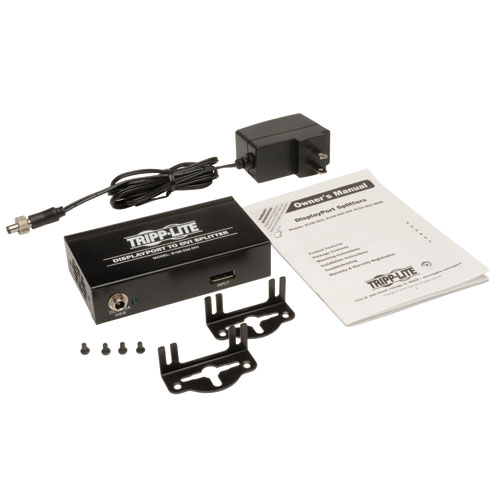

Package Includes

  • B156-002-DVI Multi-Display Splitter/Expander
  • Mounting Hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)

OVERVIEW

Chromebook Compatible No
Display Style Splitter
Model Type DVI
Cable Types Displayport in, DVI out

PHYSICAL

Unit Dimensions (hwd / in.) 1.00 x 3.60 x 2.52
Unit Weight (lbs.) 1.0
Color Black

CONNECTIONS

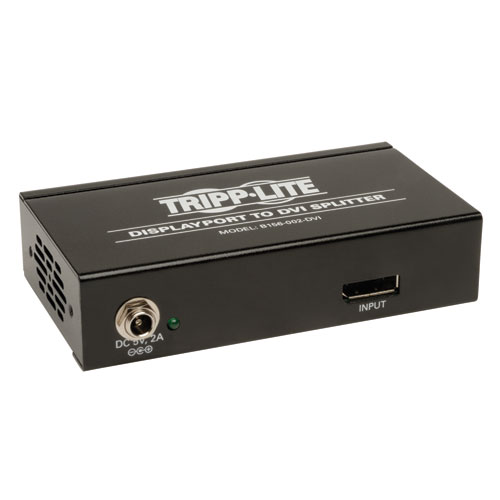

Connector A DISPLAYPORT (FEMALE)

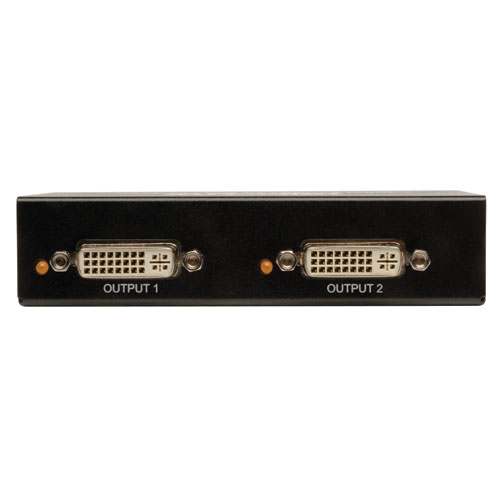

Connector B DVI-I (FEMALE) (X2)
Ports 3
