2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 4Kx2K UHD

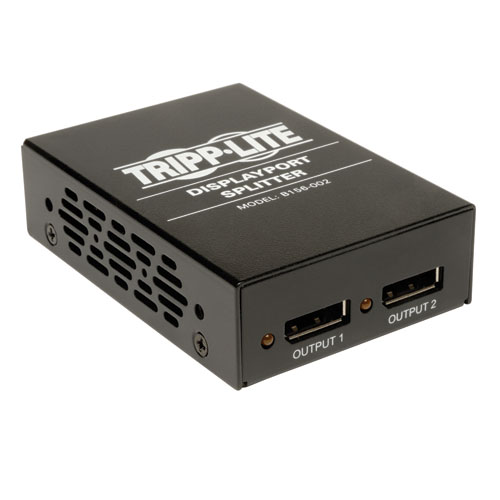

Get everyone’s attention by broadcasting awesome messages in ultra-high definition video! With Tripp Lite's B156-002 2-Port Multi-Display Video Splitter/Expander, you can split or expand a single DisplayPort signal into two separate signals and display them on two DisplayPort monitors using standard DisplayPort cables (Tripp Lite P580-Series or P583-Series). You can display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor. The B156-002 supports 4Kx2K Ultra-High Definition (UHD) video resolutions up to 3840x2160 (60Hz), 48-bit Deep Color (16 bits per channel), and is compatible with HDCP, EDID and DDC. It is compliant with DisplayPort v1.2. It comes with an external power supply and brackets for wall-, rack- or pole-mounting. All mounting hardware is included. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Key Features

Splitting, Extending, Multi-Display
  • Splits a DisplayPort video signal to simultaneously display the same signal on two DisplayPort monitors, or expands it across both monitors as in video wall mode
  • Displays can be placed up to 25 ft. away from the splitter/expander; the video source can be up to 16 ft. away from the splitter/expander (6 ft. is recommended).
  • Supports both 4Kx2K (3840x2160 at 60Hz) UHD video and standard 1080p (1920x1080 at 60Hz) high-definition video

Video Standards and Protocols

  • Supports up to 48-bit Deep Color (16 bits per channel) and video resolutions up to 4K Ultra High Definition (UHD), 3840x2160 (60Hz)
  • Complies with HDCP, EDID and DDC
  • Compatible with DisplayPort 1.2
  • Compatible with Apple® Thunderbolt connectors

Installation

  • Plug-and-play; no software or drivers required
  • Easy to install; connect the DisplayPort video source to the hub’s input port, connect the external power supply, and finally connect the two monitors to the output ports

Mounting Options

  • Wall-, rack- or pole-mounting; all mounting hardware is included

TAA-Compliant for GSA Schedule Purchases

  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases


System Requirements

  • A computer with a DisplayPort 1.2 compatible graphics card. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers, with the feature set being limited to that of your equipment (e.g. you may be limited to displaying in Clone / Mirror Mode only). Compatibility with older graphics cards is not guaranteed.
  • Maximum supported video resolutions and number of monitors will be dependent upon your graphics card. Check the specifications of your graphics card to determine its capabilities.
  • A monitor with a DisplayPort port.

Apple OSX note: Macintosh hardware with Thunderbolt connectors supports this MST hardware. OSX does not. If the Macintosh is running Windows under Bootcamp, it works fine because Windows has full control of the hardware. However, Apple OSX does not support MST for two monitors at this time. This means that if the Macintosh is running OSX, you'll only get a pair of mirrored displays and peculiar behaviour. to boot, if the two external monitors are different resolutions. We hope Apple will support MST properly, soon.

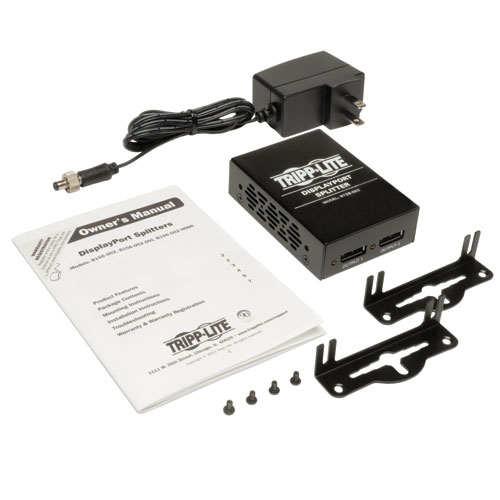

Package Includes

  • B156-002 Multi-Display Splitter/Expander
  • Mounting hardware
  • Bracket (for wall-, rack- or pole-mounting)
  • External power supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)

OVERVIEW
Chromebook Compatible No
Display Style Splitter
Model Type DisplayPort
Cable Types DisplayPort In, Displayport Out

PHYSICAL
Unit Dimensions (hwd / in.) 1.00 x 3.60 x 2.52
Unit Weight (lbs.) 1
Color Black

CONNECTIONS
Connector A DISPLAYPORT (FEMALE)

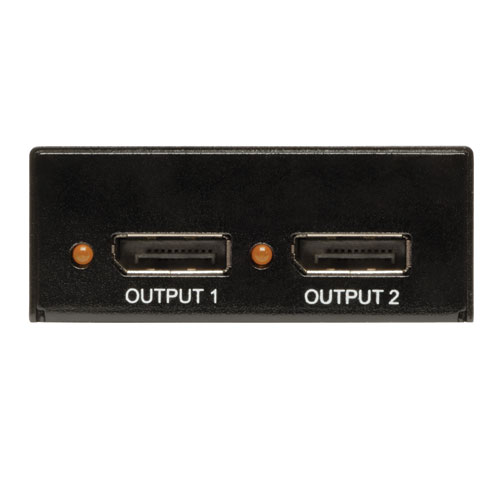

Connector B DISPLAYPORT (FEMALE) (X2)
Ports 3



SKU: TL-B156-002
