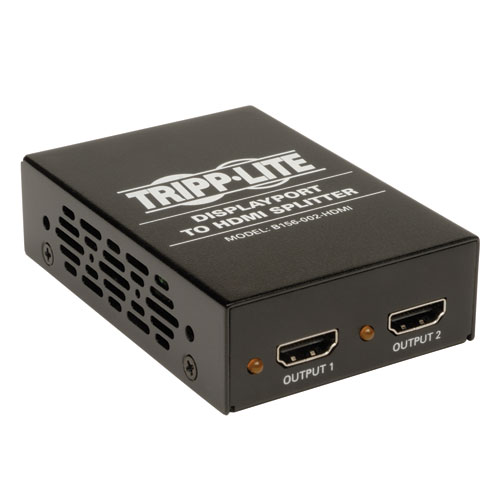

2-Port DisplayPort 1.2 to HDMI Multi-Stream Transport (MST) Hub, 3840 x 2160 4Kx2K UHD

Get everyone’s attention by broadcasting awesome messages in ultra-high definition video! With Tripp Lite's B156-002-HDMI 2-Port DisplayPort 1.2 to HDMI MST Hub, you can split or expand a single DisplayPort signal into two separate signals and display them on two HDMI monitors using standard DisplayPort (Tripp Lite P580-Series or P583-Series) and HDMI (Tripp Lite P568-Series) cables. You can display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor. The B156-002-HDMI supports 4Kx2K Ultra-High Definition (UHD) video resolutions up to 3840 x 2160 (24 and 30 Hz), 48-bit Deep Color (16 bits per channel), and is compatible with HDCP, EDID and DDC. It comes with an external power supply and brackets for wall-, rack- or pole-mounting. All mounting hardware is included. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Key Features

Splitting, Extending, Multi-Display
  • Splits or expands a DisplayPort audio/video signal on two HDMI monitors
  • Display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor
  • Supports both 4Kx2K (3840 x 2160 at 24 or 30Hz) UHD video and standard 1080p (1920x1080 at 60Hz) high-definition video

Video Standards and Protocols

  • Supports up to 48-bit Deep Color (16 bits per channel) and video resolutions up to 4K Ultra High Definition (UHD), 3840 x 2160 @ 24 or 30Hz
  • Complies with HDCP, EDID and DDC
  • Compatible with DisplayPort 1.2
  • Compatible with Apple® Thunderbolt connectors

Installation

  • Plug-and-play; no software or drivers required
  • Easy to install; connect the DisplayPort video source to the hub's input port, connect the external power supply and finally connect the two HDMI monitors to the output ports

Mounting Options

  • Wall-, rack- or pole-mounting; all mounting hardware is included

TAA-Compliant for GSA Schedule Purchases

  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

  • A computer with a DisplayPort 1.2 compatible graphics card. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers, with the feature set being limited to that of your equipment (e.g. you may be limited to displaying in Clone / Mirror Mode only). Compatibility with older graphics cards is not guaranteed.
  • Maximum supported video resolutions and number of monitors will be dependent upon your graphics card. Check the specifications of your graphics card to determine its capabilities.
  • A monitor with a HDMI port.

Apple OSX note: Macintosh hardware with Thunderbolt connectors supports this MST hardware. OSX does not. If the Macintosh is running Windows under Bootcamp, it works fine because Windows has full control of the hardware. However, Apple OSX does not support MST for two monitors at this time. This means that if the Macintosh is running OSX, you'll only get a pair of mirrored displays and peculiar behaviour. to boot, if the two external monitors are different resolutions. We hope Apple will support MST properly, soon.

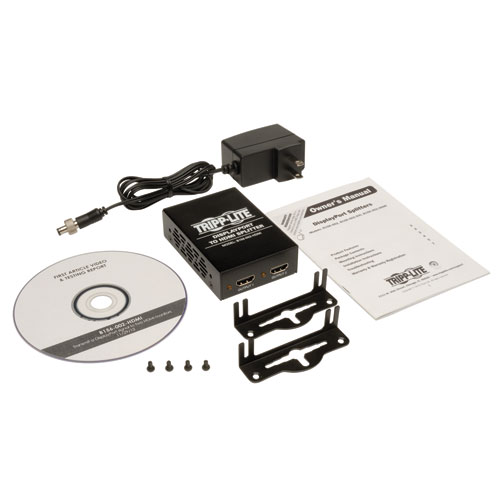

Package Includes

  • B156-002-HDMI DisplayPort 1.2 to HDMI Multi-Stream Transport (MST) Hub
  • Mounting Hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)

OVERVIEW
Chromebook Compatible No
Display Style Splitter
Model Type HDMI
Cable Types DisplayPort in, Displayport out

PHYSICAL
Unit Dimensions (hwd / in.) 1.00 x 3.60 x 2.52
Unit Weight (lbs.) 1.0
Color Black

CONNECTIONS
Connector A DISPLAYPORT (FEMALE)

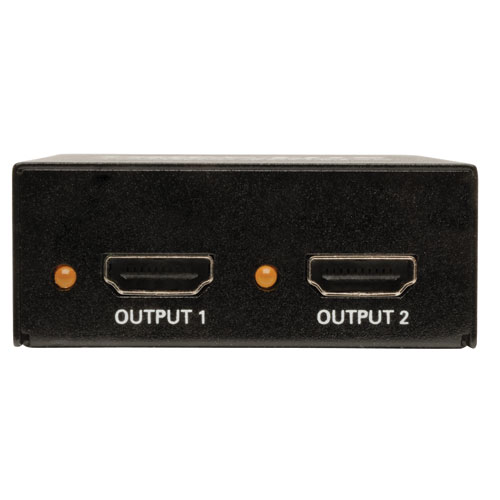

Connector B HDMI (FEMALE) (X2)
